Made with proof materials of water, and can be used in wet areas such as changing rooms and toilets

Consistent and smooth system, does not require the use of a superior locking bar.

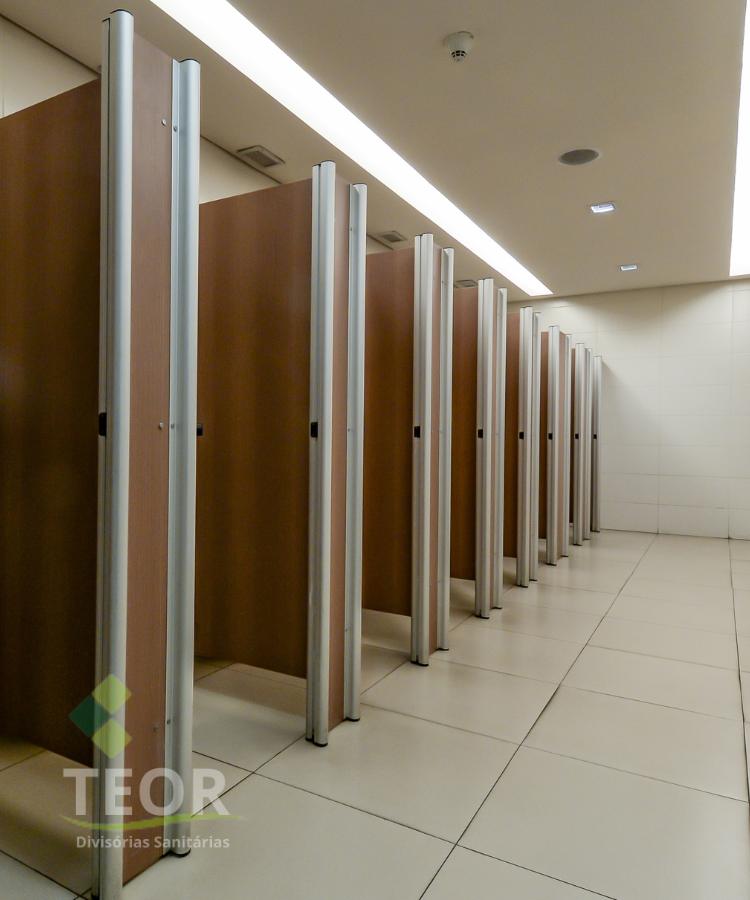

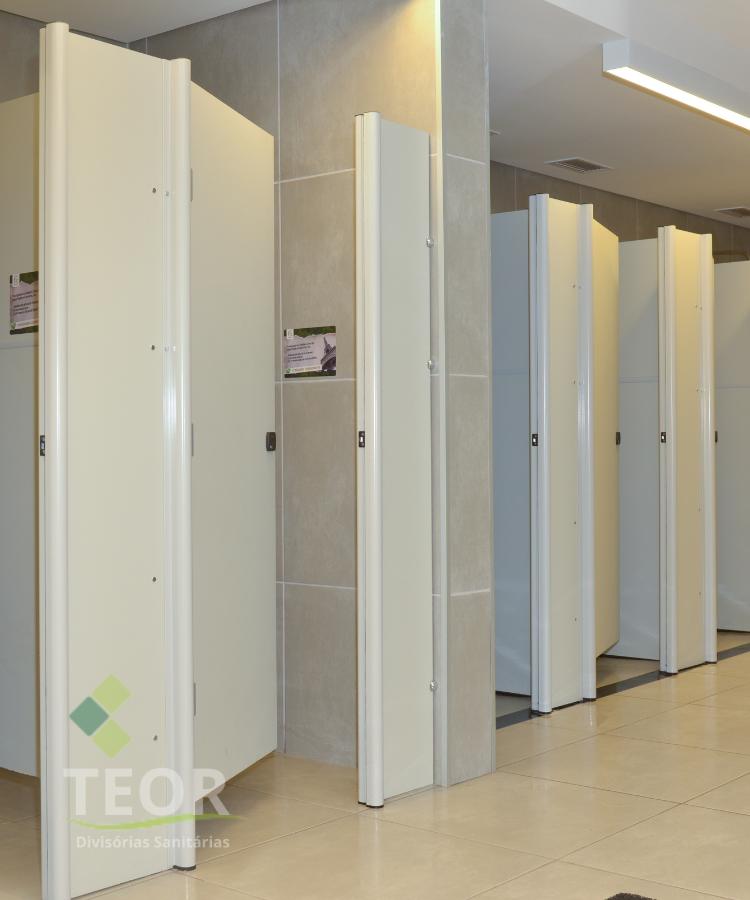

Composed of aluminum structural uprights fixed to the floor and panels in TS 10 mm double-sided structural laminate fixed to the walls with special supports, providing practicality and agility in the installation.

PANELS AND DOORS

TS structural melamine laminate, 10mm with double-sided textured finish.

It is a melamine structural phenol laminate produced at high temperature and pressure with great resistance, the impact and abrasion, fully waterproof, composite of cellulosic fiber extract impregnated with phenolic resin and decorative paper with melamine resin on both sides.

HORIZONTAL DIMENSIONS

Width of the boxes use PNE minimum of 1500mm Depth 1700mm and doors 840mm.
Minimum 1000mm 1250mm (standard), other measures according to the project presented.

VERTICAL DIMENSIONS

Division with a height of 1800 mm: consider panels front, side with height of 1800mm without floor elevation.

DIMENSIONS

Minimum width of the boxes 850mm, with 550mm doors too many measures according to the project.

INTERNAL PARTITIONS

Between vases consider a height of 1650mm suspended from the floor 150mm, for partitions between showers and between vases and showers consider a height of 1800mm.

BOX DEPTH

Minimum of 1000mm 1250mm (standard), other measures according to the project presented.

HORIZONTAL JOIN

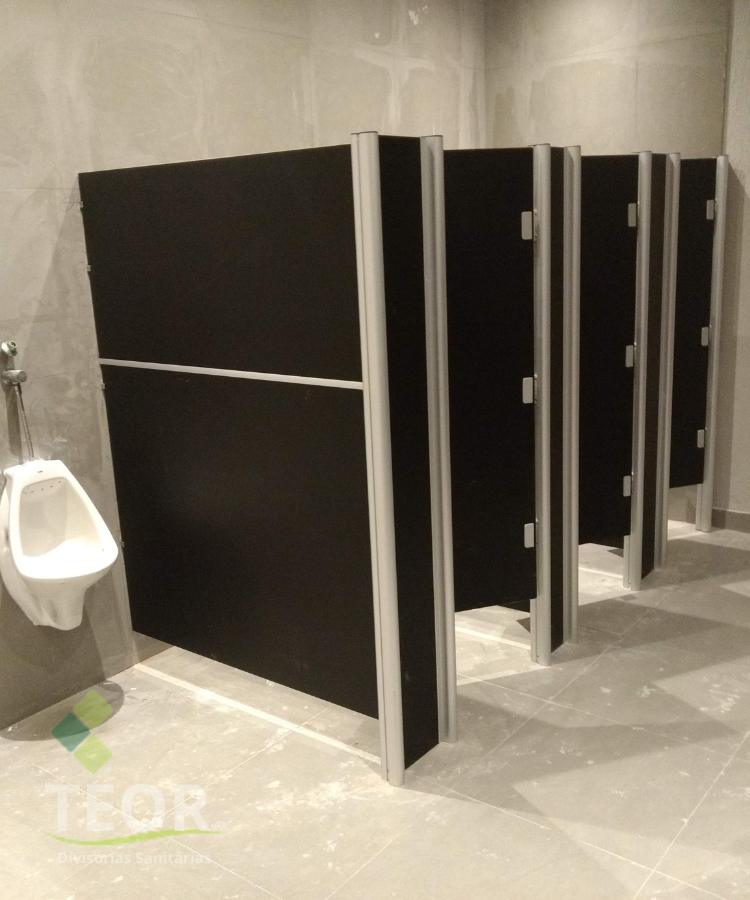

The internal panels will have a horizontal joint at half height, ensuring total rigidity of the system, according to the generic design

VERTICAL PROFILE

Fully reinforced aluminum, specially developed for the system.

NOTES

FOR HEIGHTS OF 2100/2000/1900 MM THE MEASUREMENTS ARE PROPORTIONAL

THE DIMENSIONS MUST BE ADAPTED TO MEET ABNT NBR 9050 2015

SPECIFICATIONS

UNIVERSAL LOCK

Free/occupied tag type with nylon body and aluminum hasp, in black and polycarbonate finish mirrors, printed in silver, black and white.

FEATURES

External emergency opening
- Anatomic external and internal handles.
- Universal opening system with advance tongue, allowing its use by people with special needs.
- Absence of apparent fixings making undue removal difficult (anti-theft).

AUTOMATIC HINGES

Automatic self-closing hinges in special aluminum alloy (03 units per door), with double support for the axle pin, articulated on nylon bushings, with 30º permanence angle control (partial opening) , 0º (closed), or any other angle multiple of 30º.

Colors and finish: in the same color and finish as the aluminum uprights.

PANE FIXERS

Piece in special zamak alloy with stainless steel locking screw with internal hexagonal slot.

Colors and finish: in the same color and finish as the aluminum uprights.

OTHER COMPONENTS

Rigid shoe (internal not apparent) of the upright in special aluminum alloy or nylon fixed to the floor with appropriate stainless steel screws. Fixing screws for stainless steel profiles and accessories. Cover of profiles in black nylon. Upstream beater in black 10x10mm nylon.

GUARANTEES

- Hinges and locks: 05 years.

- Other components: 10 years.
