Onyx Plus Line
FEATURES
Produced with waterproof materials and can be used in wet areas such as changing rooms and restrooms
Robust and select product, without apparent front structural profiles.

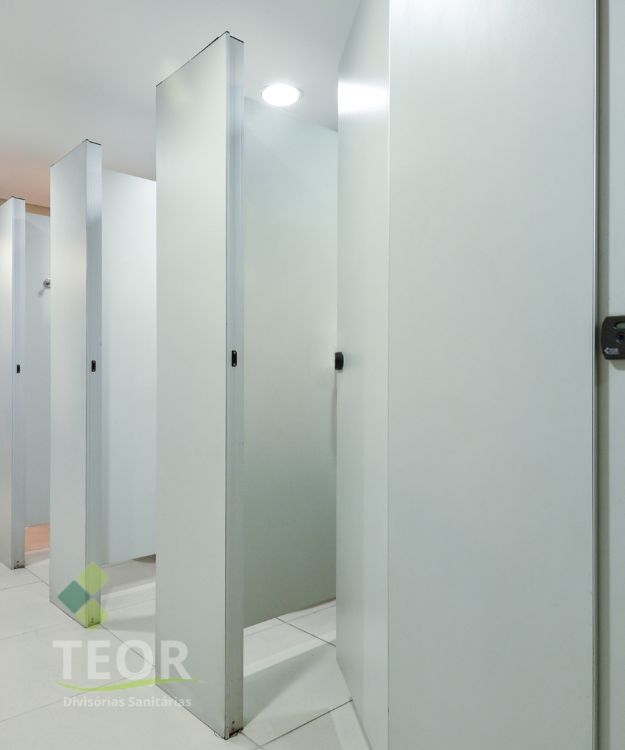

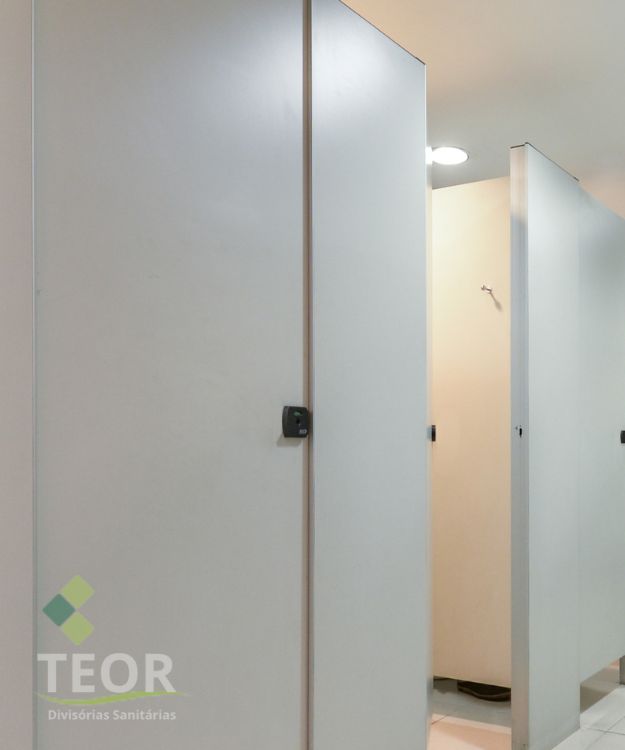

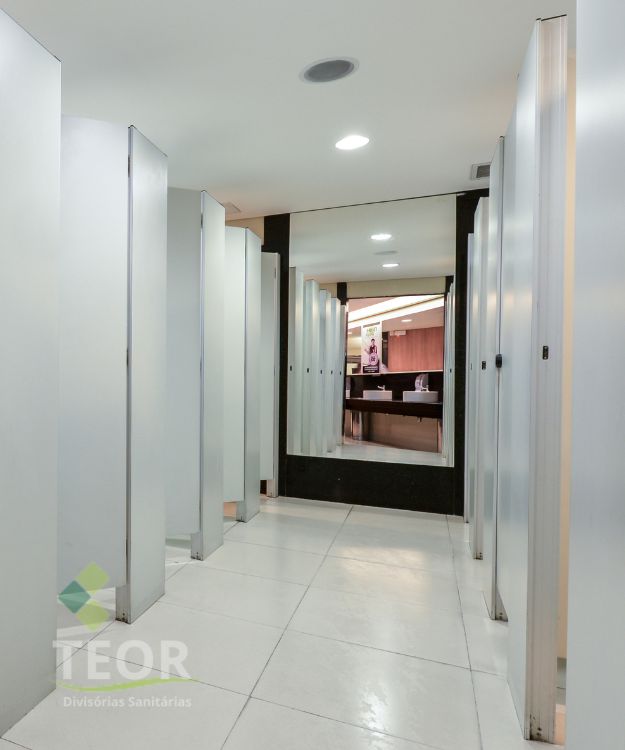

Toilet boxes produced with waterproof materials, having structural laminate/TS as the main component, in addition to structural aluminum profiles and exclusive hardware of the system that allow its use without restrictions in wet areas such as changing rooms and toilets, even in shower stalls.
PANELS AND DOORS
TS structural melamine laminate, 10mm with double-sided textured finish.
It is a melamine structural phenol laminate produced
at high temperature and pressure with great resistance, the
impact and abrasion, fully waterproof, composite
of cellulosic fiber extract impregnated with phenolic resin and decorative paper with melamine resin in both
faces
FRONT PANELS
Structured panels with a total thickness of 70mm, made up of two TS-10m laminate sheets and aluminum stop profiles inserted at the ends.
CROSS PANELS AND DOORS
TS-10 mm double-sided structural laminate.
NOTES
ALL COLORS ON THE PERTECH FINISH CARTEL. TX
70 MM THICKNESS 70 MM THICKNESS PANELS IN DOUBLE TS
SPECIFICATIONS
OPENING THE DOORS
The system allows the installation of doors with internal or external opening without the need for special accessories.
HORIZONTAL PROFILE:
The inner panels have a joint horizontal at half height, with end fasteners ensuring full consistency and security.
AUTOMATIC HINGES
Self-closing type in special zamack alloy (03 units per door), with double support for the axle pin, articulated on nylon bushings, with control of the permanence angle of 30º (partial opening), 0º ( closed), or any other angle multiple of 30º.
FINISHING
Matt anodized, chromed or electrostatic painting in the colors of the aluminum uprights.
UNIVERSAL LOCK
Free/occupied tag type with nylon body and aluminum hasp, in black and polycarbonate finish mirrors, printed in silver, black and white.
FEATURES
- External emergency opening
- Anatomic external and internal handles.
- Universal opening system with advance tongue, allowing its use by people with special needs.
- Absence of apparent fastenings making undue removal difficult (anti-theft).
OTHER COMPONENTS
- Rigid footing (internal not apparent) of the aluminum pillar, fixed to the floor with appropriate stainless steel screws.
- Screws for fixing the profiles and accessories in stainless steel.
- Cover of the profiles in nylon and/or anodized aluminum.
- Mixer in colorless silicone.
PANE FIXERS
Piece in special zamack alloy with stainless steel lock screw containing internal hexagonal slot
COLORS AND FINISHES
Natural satin anodizing or electrostatic painting in white and black.
Same system height, no floor elevation.
Width according to design.
SAME HEIGHT OF THE PARTITION, ELEVATED FROM THE FLOOR WITH THE USE OF A LOCKING TRIMMER, IN TS-10 MM, INSTALLED AT A HEIGHT OF 1.50M OR ON THE TOP OF THE TVL.
60 CM WIDTH (STANDARD), OR ACCORDING TO SPECIAL PROJECT MEASUREMENT.
SAME HEIGHT AS THE PARTITION, ELEVATED FROM THE FLOOR WITH THE USE OF A LOCKING TRIMMER, IN TS-10 MM, INSTALLED A 200MM FROM TOP END.
40 CM WIDTH, OR ACCORDING TO SPECIAL PROJECT MEASUREMENT.
