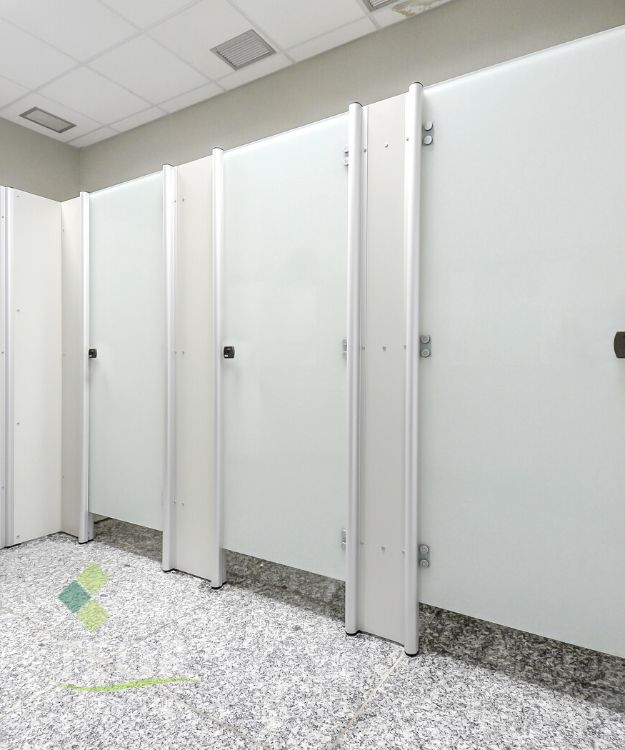

Onyx Crystal Line
FEATURES
Made with proof materials of water, and can be used in wet areas such as changing rooms and toilets
Toilet boxes produced with waterproof materials, having structural laminate/TS as the main component, in addition to structural aluminum profiles and exclusive hardware of the system that allow its use without restrictions in wet areas such as changing rooms and toilets, even in shower stalls.
PANELS
In structural laminate TS double-sided textured finish produced at high temperature and pressure, providing great resistance to impact and abrasion, totally waterproof, composed of extract of cellulosic fibers impregnated with phenolic resin and decorative paper with resin melamine on both sides.

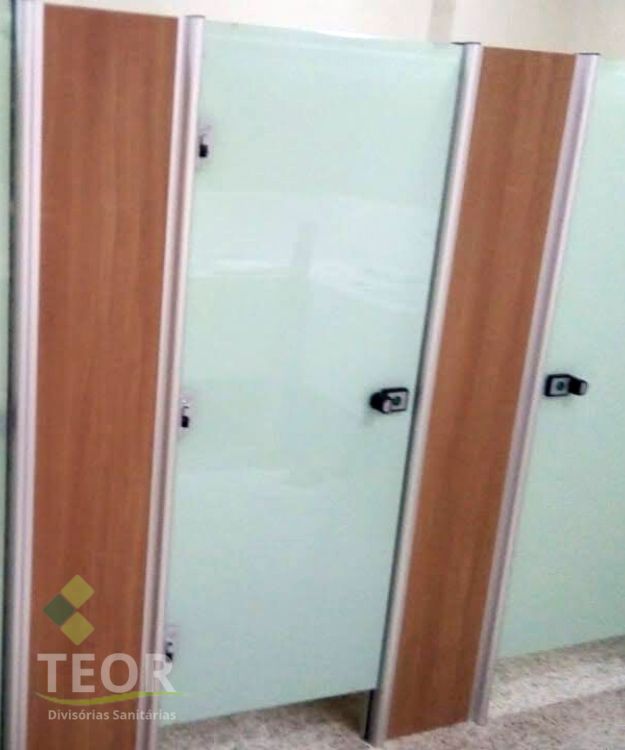

PORTS

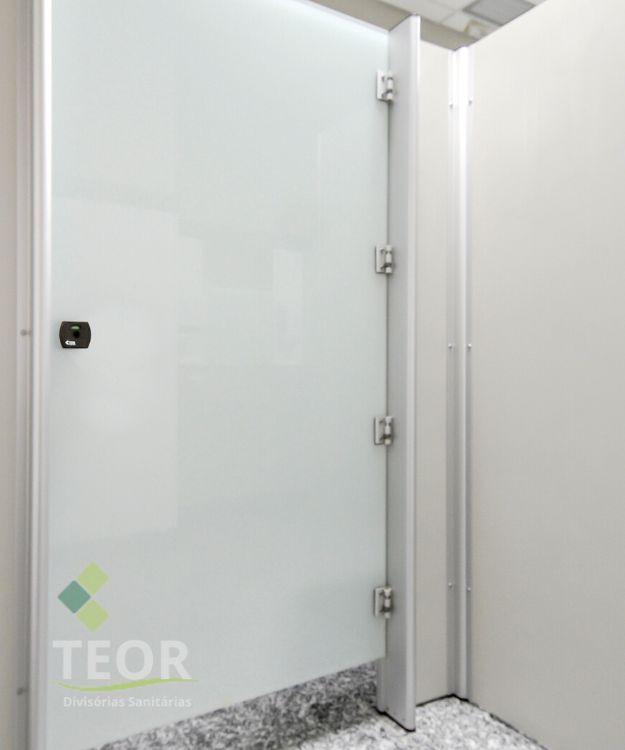

Composed of 8/10mm thick tempered glass painted on 01 side with special blast furnace painting providing harmony and durability in any environment.
HORIZONTAL DIMENSIONS
PNE box Width of PNE boxes: minimum 1500mm.
Recommended depth 1700mm and doors 840mm.
DIMENSÕES VERTICAIS
Divisória com altura de 1800 mm: considerar pinéis frontais, laterais com altura de 1800mm sem elevação do piso.
DIMENSÕES
Largura mínima dos boxes: 850mm , com portas de 550mm demais medidas de acordo com o projeto.
DIVISÓRIAS INTERNAS
Between vases consider a height of 1650mm suspended from the floor 150mm, for partitions between showers and between vases and showers consider a height of 1800mm
BOX DEPTH
Minimum of 1000mm 1250mm (standard), other measures according to the project presented.
HORIZONTAL JOIN
The internal panels will have a horizontal joint at half height, ensuring total rigidity of the system, according to the generic design
VERTICAL PROFILE
Fully reinforced aluminum, specially developed for the system.
NOTES
FOR HEIGHTS OF 2100/2000/1900 MM THE MEASUREMENTS ARE PROPORTIONAL
THE DIMENSIONS MUST BE ADAPTED TO MEET ABNT NBR 9050 2015
COLORS AND FINISHES
Natural anodizing or electrostatic painting in different finishes in white and black
SPECIFICATIONS
UNIVERSAL LOCK
Free/occupied tag type with nylon body and aluminum hasp, in black and polycarbonate finish mirrors printed in silver, black and white
FEATURES
External emergency opening anatomical external and internal handles. universal opening system with sliding tongue, allowing its use PNE. lack of apparent fixings, making undue removal difficult (anti-theft).
AUTOMATIC HINGES
Automatic self-closing hinges in special aluminum alloy (03 units per door), with double support for the axle pin, articulated on nylon bushings, with 30º permanence angle control (partial opening) , 0º (closed), or any other angle multiple of 30º.
Colors and finish: in the same color and finish as the aluminum uprights.
PANE FIXERS
Piece in special zamak alloy with stainless steel locking screw with internal hex slot.
Colors and finish: in the same color and finish as the aluminum uprights.
OTHER COMPONENTS
Rigid shoe (internal not apparent) of the upright in special aluminum alloy or nylon fixed to the floor with appropriate stainless steel screws. Fixing screws for stainless steel profiles and accessories. Cover of profiles in black nylon. Upstream beater in black 10x10mm nylon.
GUARANTEES
- Hinges and locks: 05 years.
- Other components: 10 years.
Same system height, no floor elevation.
Width as per design, with edge profile.
Same pattern as front panels, no floor elevation.
Width: 620mm (standard) with structural profile at the end, other measures according to the project
TS-10 mm sheet, with rounded external corners, coupled with a 200 x 400mm object holder shelf, fixed with special zamak supports on the walls.
Standardized measurement: 400 x 800 mm, raised 600mm from the floor.
Other measurements and designs: according to the project.
